Product Description

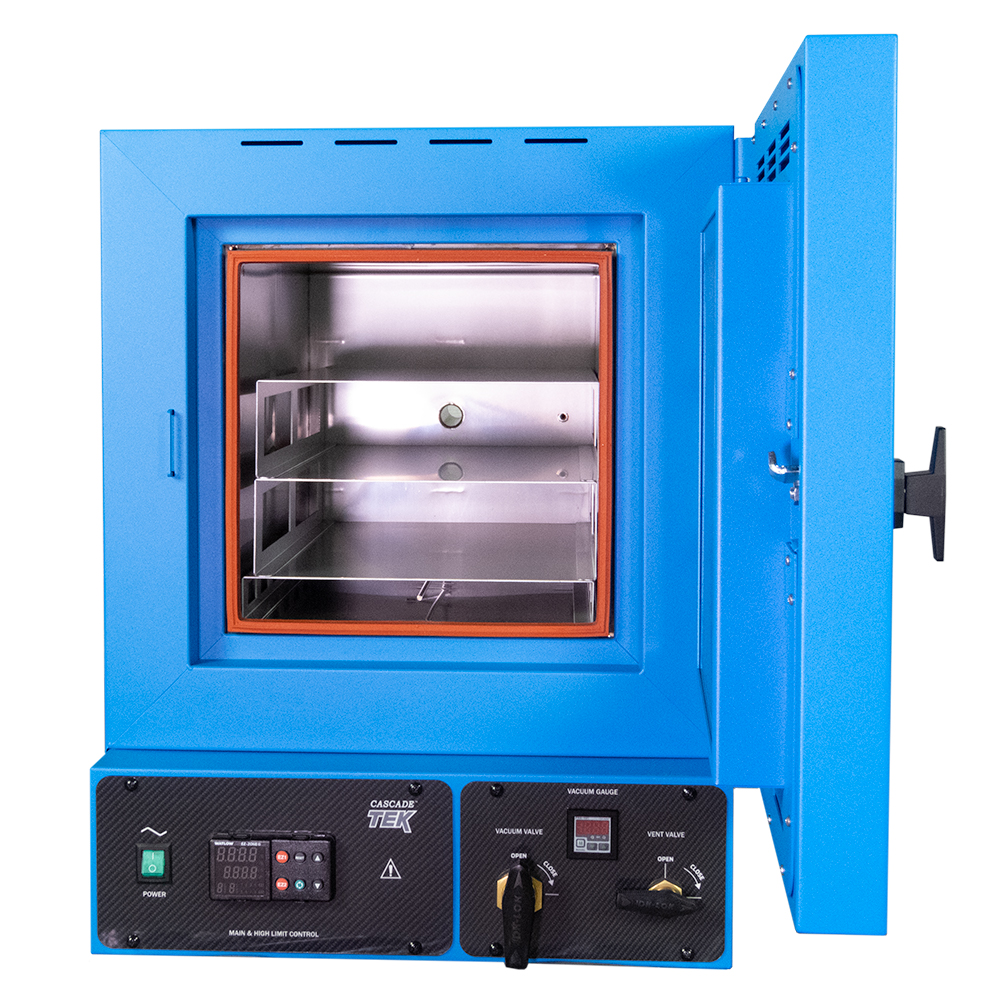

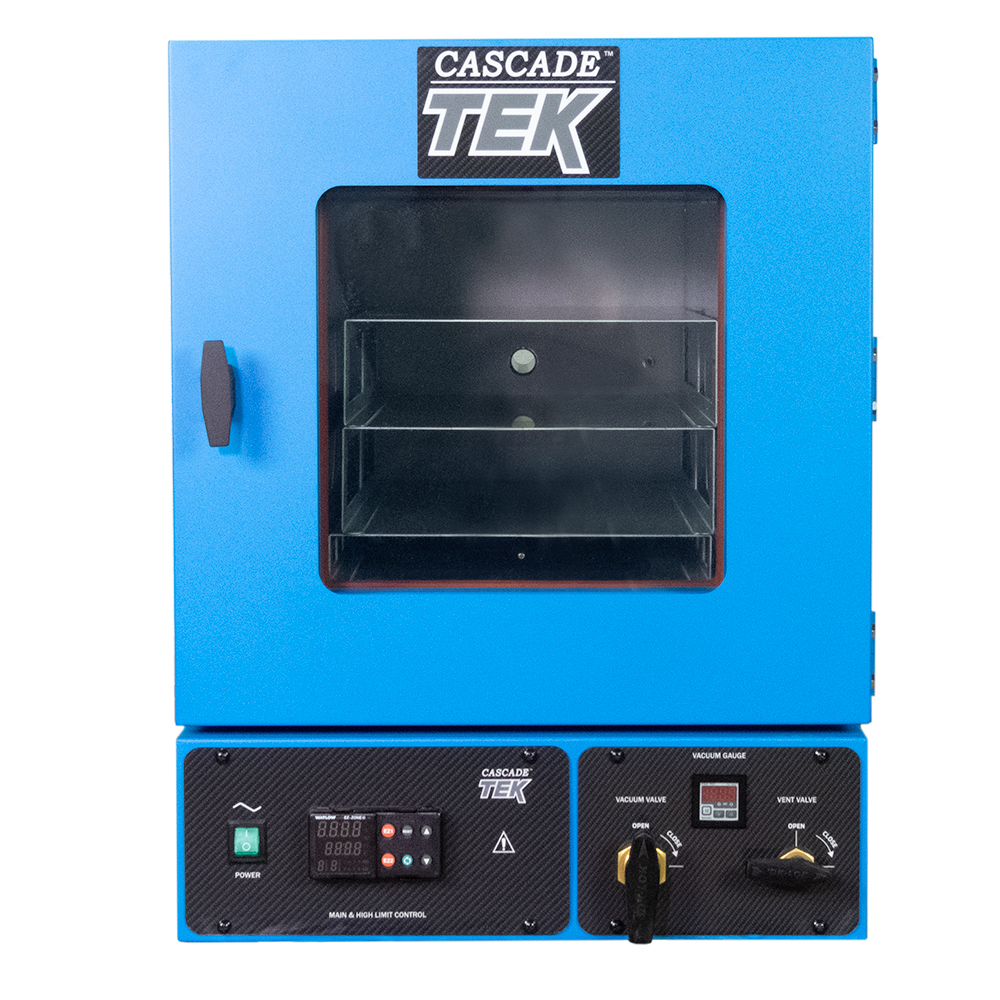

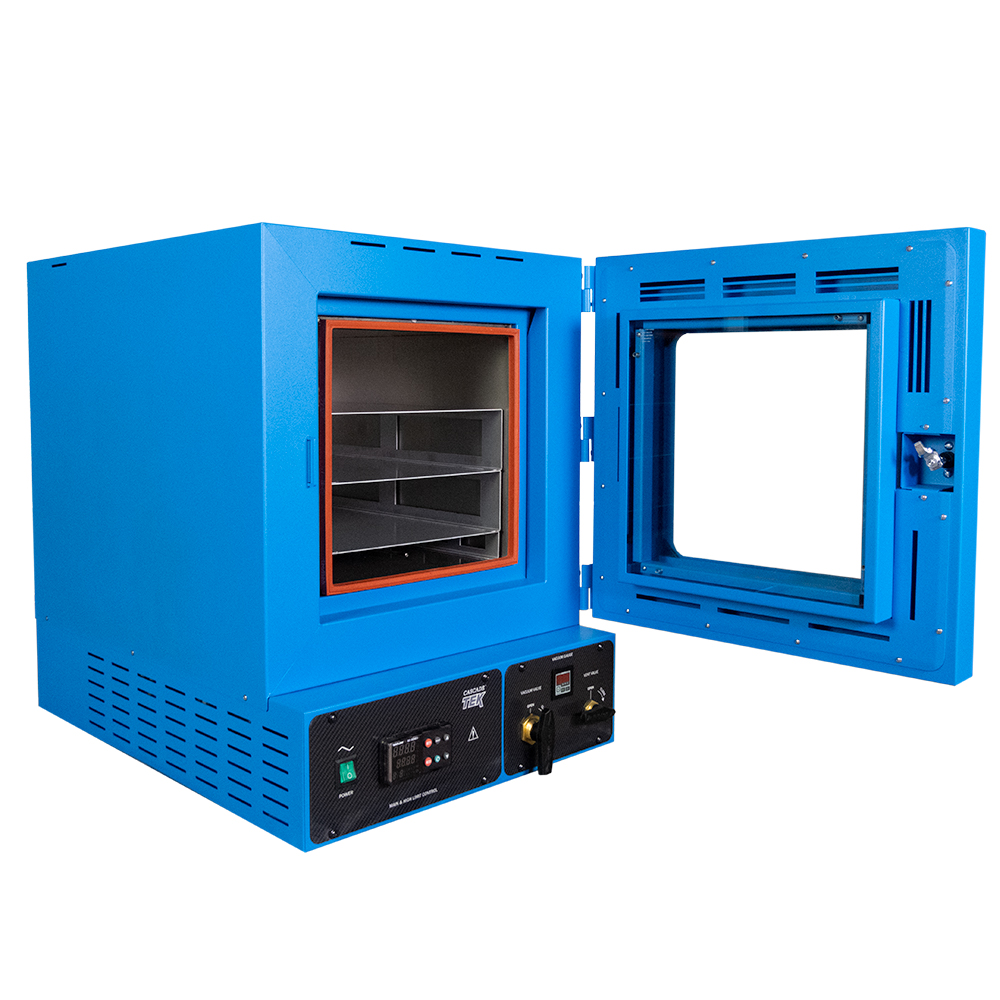

The Cascade TEK TVO-2 vacuum oven is our smallest benchtop unit. Cascade TEK is happy to offer everything you need for a complete vacuum drying system – including dry or wet vacuum pumps, connection kits and a variety of replacement door gaskets suitable to your application.
Important TVO-2 Vacuum Oven Features

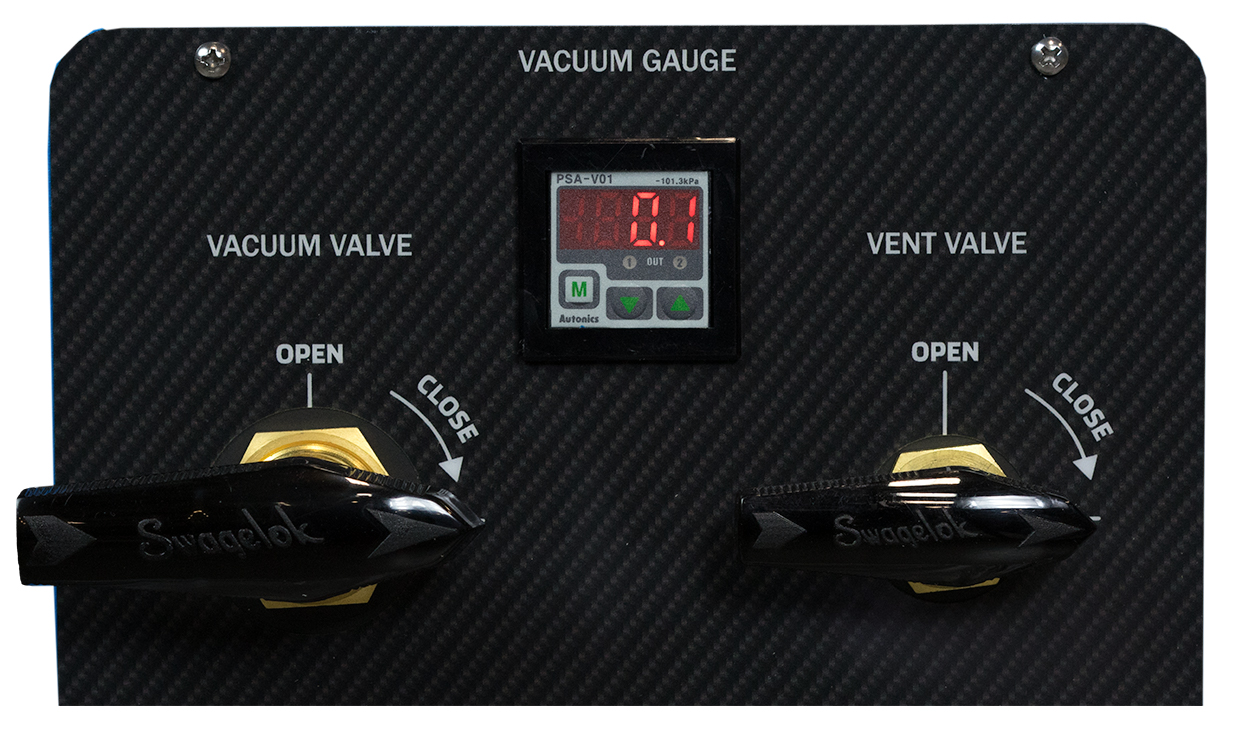

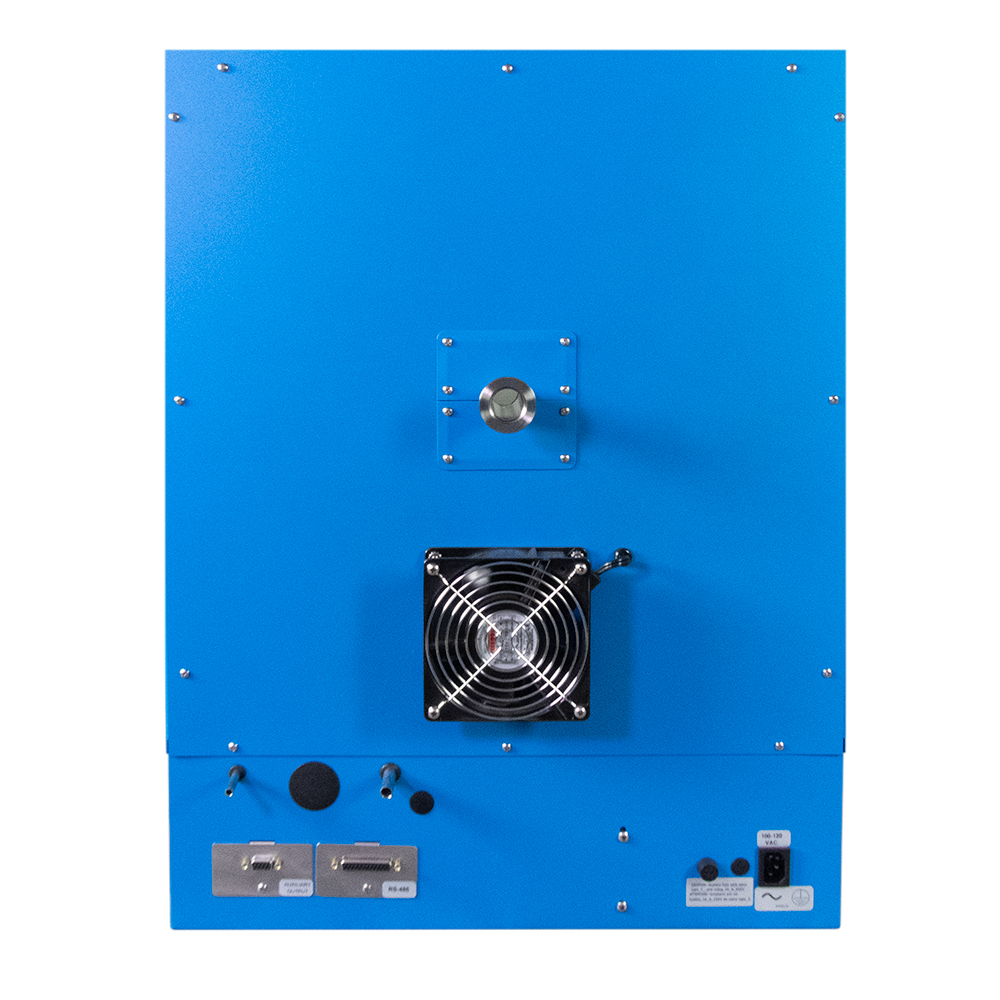

Oven temperature is controlled via a Watlow PM9 Plus programmable ramp and soak controller. (Ask how it can be configured to automatically execute your vacuum drying process). The TVO-2 also includes a fully integrated digital overtemperature protection controller. The vacuum is read in inches of Mercury (Hg) via a digital vacuum gauge. Vacuum & Backfill hand valves are conveniently located on the front control panel. The purge valve is set up to allow for backfilling with any inert gas. Rear connections include a 3/8″ tube stub for the vacuum pump and a 1/4″ tube stub for backfill. An additional KF-25 access port is located in the rear center for optional feedthrough or sensor connections. The TVO-2 also has 3 fixed aluminum shelves. Cascade TEK offers appropriately sized connection kits and pumps to bring the entire system online.
Standard Features
Glass Viewing Window
Inert gas backfill Connection
Stainless Steel Interior
Aluminum Shelves
Powder Coated Steel Exterior
Digital Integrated Over Temperature Limit
Spare KF-25 Access Port
Recipe-based PID Temperature Control. 4 Ramp and Soak recipes with up to 40 total steps.
61010-1, EN 61010-1, CSA 61010-1, CE, SAFETY CERTIFICATIONS
Analog Outputs for temperature and pressure
Automate Your Vacuum Drying Process
Cascade TEK can automate the TVO-2 to execute your vacuum drying process with the push of a button. This includes automatic opening/closing of vacuum/vent valves, automatic backfill sequence and temperature ramps, alarms and shut down. Our automated systems integrate specialty pumps, traps, serial communications and vacuum rated feedthrough based on your specific needs. Please inquire.
Customized to Meet Your Specific Application
Cascade TEK understands that every requirement is unique. Ask about modifying our ovens to meet your exact requirements. Popular modifications include:
• Additional Serial communication capabilities including Modbus® RTU, EtherNet/IP™, Modbus® TCP, PROFIBUS DP,
DeviceNet™ and J1939 CAN bus
• Additional access ports for feedthrough and power connections
• Additional shelves or custom racks to maximize oven capacity
• Also available in 220V configurations
• NIST traceable calibrations
• Factory Acceptance Testing (FAT)
Vacuum pumps are also very application-specific. We help determine the correct pump to meet your exact requirements. Let us help you choose the correct vacuum pump and connection kit:
• See our favorite vacuum pumps
• See our list of connection kits and other vacuum accessories
• Before 2024 upgrade to Watlow PM9 Plus unit controllers from the discontinued Watlow EZ Controllers product manual are located on our resources page
