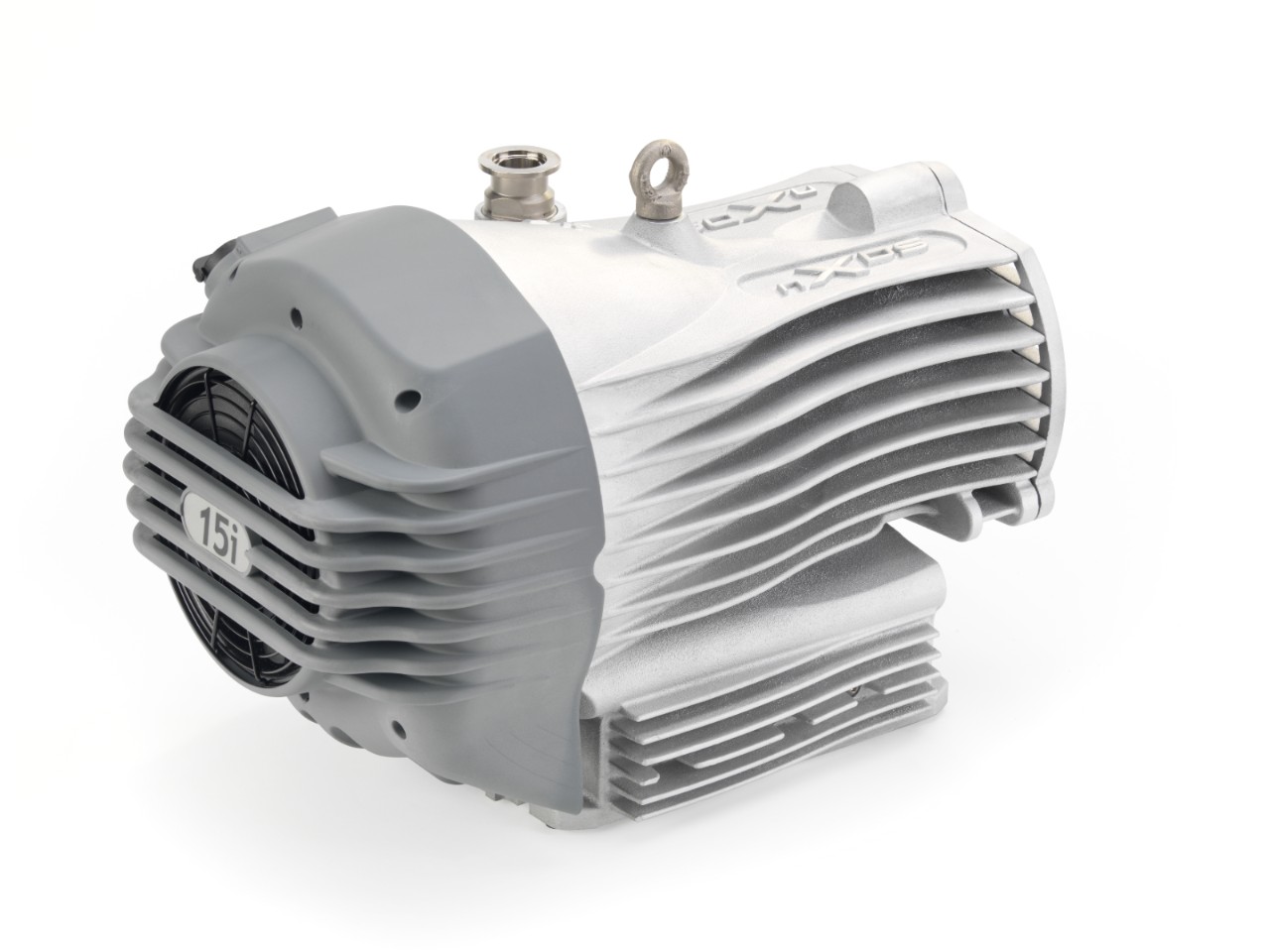

Edwards nXDS15iC Dry / Oil Free Scroll Vacuum Pump

$11,700.00

Part Id: 6700594

The Edwards nXDS15iC is a compact, high performance, dry, scroll, oil-free vacuum pump, delivering large pumping speed capacity and simple maintenance. Great for aggressive chemical applications that require a more chemically resistant pump.

Request a Quote

Product Description

Pumps designed for clean environments. Oil-free pump eliminates the risk of contamination (oil hydrocarbons back streaming into the oven interior). The hermetic design, with the motor and all bearings completely isolated from the vacuum path, provides clean, dry vacuum. Oil-free pump eliminates need for foreline traps, mist eliminators as part of connection. Maintenance: tip seal replacement each year or approximately 9000 hours of use. Air Cooled. For more aggressive applications, this ‘C’ variant feature Chemraz® internal valves and stainless steel fittings for extra protection from the pumped media. A737-02-983.

Product Specifications

Ultimate Vacuum

5.0 x 10-3 Torr

Pumping Speed

8.9 CFM (252 L/min)

Water Vapor Capacity

240 g/hr

Inlet Connection

KF25

Outlet Connection

KF25

Electrical

50/60Hz, AC, 1Ø

Voltage

110V-120V, 220V-240V

Shipping Weight

64 lb (29 kg)

Warranty

Manufacturer's Warranty
